ReGun

ReGun is part of a comprehensive ReCas anti-drone solution.

extremely light and
portable
detection of
persons behind an obstacle
range up to
40 m
intuitive
operation

Independent hand-held directional jammer specially designed to jam of the most commonly used commercial, do-it-yourself and military drones that threaten objects of critical infrastructure, facilities or protected persons. ReGun will send a drone to the ground, or send it back to the launch site.

More

ReGun is part of a comprehensive ReCas anti-drone solution.

Key Features

Capabilities

It can jam remote control, telemetry, GNSS systems, video links and drone data transmission:

  • 5 ISM bands: 433 MHz, 868 MHz, 915 MHz, 2.4 GHz and 5.8 GHz
  • GNSS satellite navigation systems: GPS, GLONASS, GALILEO and BEIDO

It will jam the drone at a distance of 1,000 m or more, depending on the type of drone being jammed and the distance from its remote control.

The jammer is certified as safe for humans according to international regulations.

The set includes

  • ReGun jammer with optical reticle*
  • Two rechargeable Li-Pol batteries
  • Battery charger
  • Spectrum analyzer for testing of the functionality
  • Textile transport case for carrying
  • Durable transport case for storage and transport

* Optionally available with advanced mobile operations console for connectivity with the C2 system.

Technical Specification

Frequency coverage  5 RF bands – Control, Video + Telemetry:
  • 433 MHz (420 – 450 MHz)
  • 868 MHz (860 – 902 MHz)
  • 915 MHz (902 – 928 MHz)
  • 2,4 GHz (2 400 – 2 485 MHz)
  • 5,8 GHz (5 725 – 5 850 MHz)
4 types of GNSS system:
  • GPS/QZSS: L1/L2/L5
  • GLONASS: L1/L2/F1/F2
  • BEIDOU: B1/B2/B3
  • GALILEO: E1/E5/E6
Range of directional coverage Directional coverage range 500 to 1 000 m
Range of angular coverage Vertical + Horizontal 30° to 45°
Operational modes  Each band separately or all bands at once

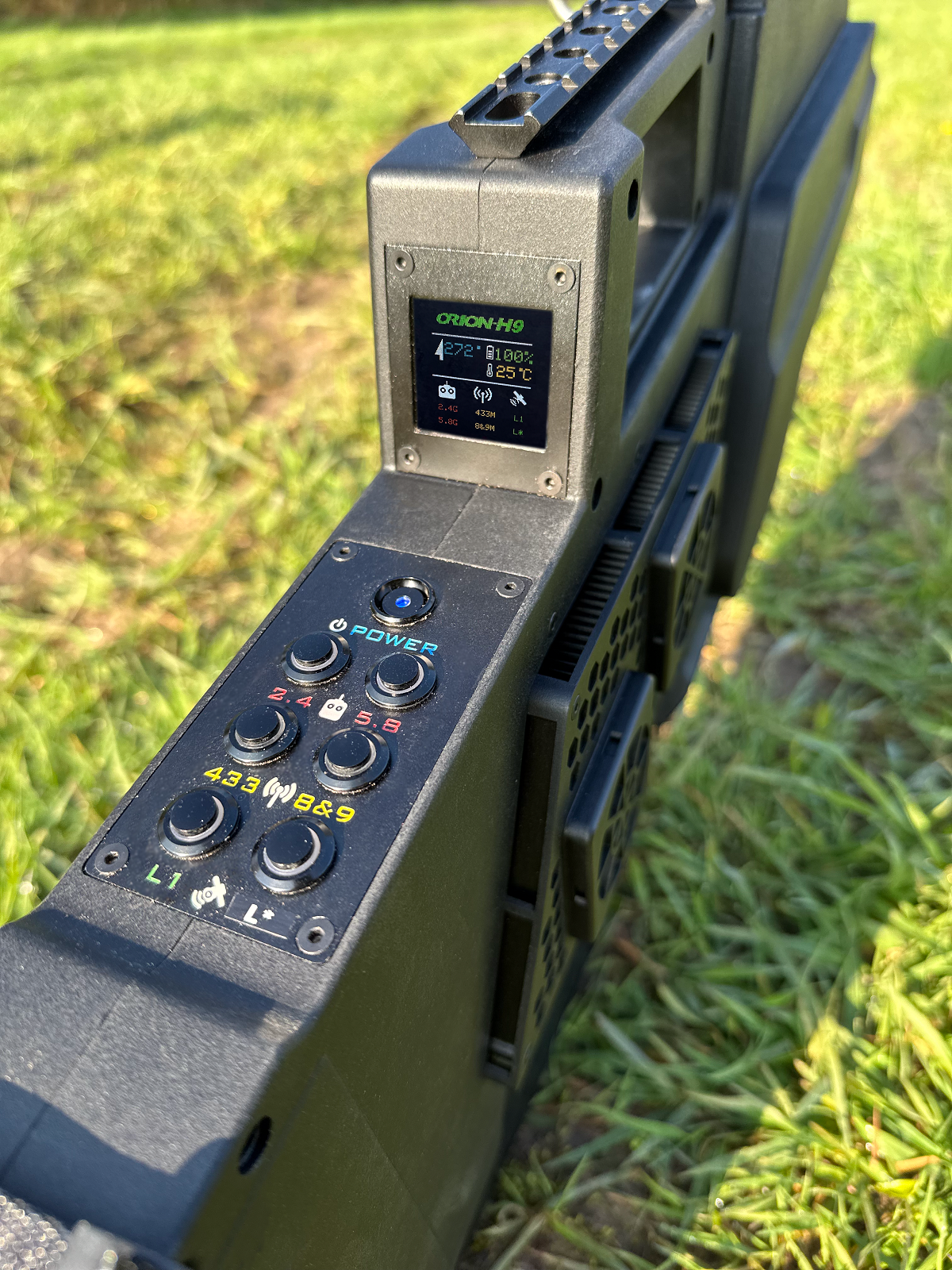

Build-in display OLED with display:
  • start-up process – test
  • battery level, temperature and selected bands
  • bearing direction using the built-in digital compass
Battery type Li-Pol, user replaceable rechargeable battery 22.2 V, 10 000 mAh
Stanby time  Up to 48 hours
Operational time Up to 60 minutes
Battery rechargeable time  Approx. 4 hours (from full discharge up to full charge)
Weight 7,5 kg
Dimensions 68 x 37 x 9 cm
Environmental and physical resistance Operating temperature: -15 to 55 °C
Storage temperature: -20 to 70 °C
Mechanical resistance: IP6x
Overheating protection: 55 °C
Safety  In accordance with international standards for radiation risk
